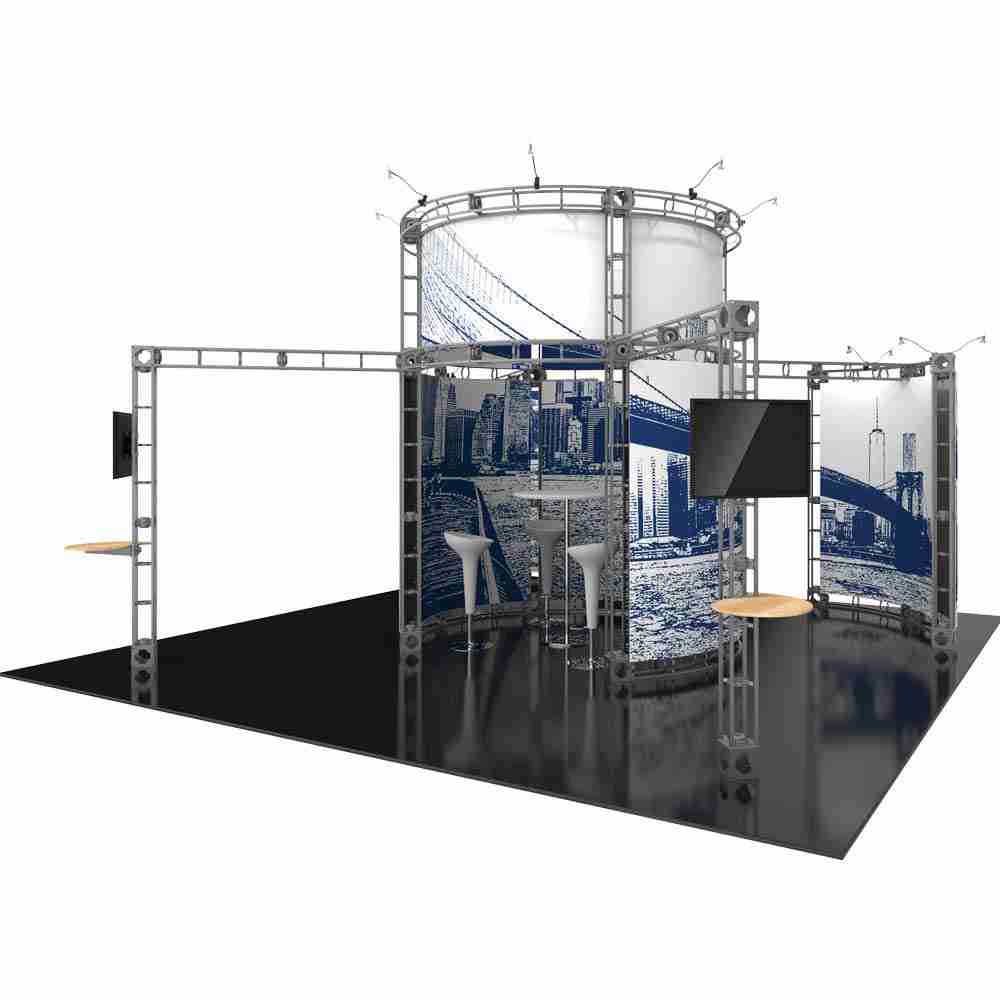

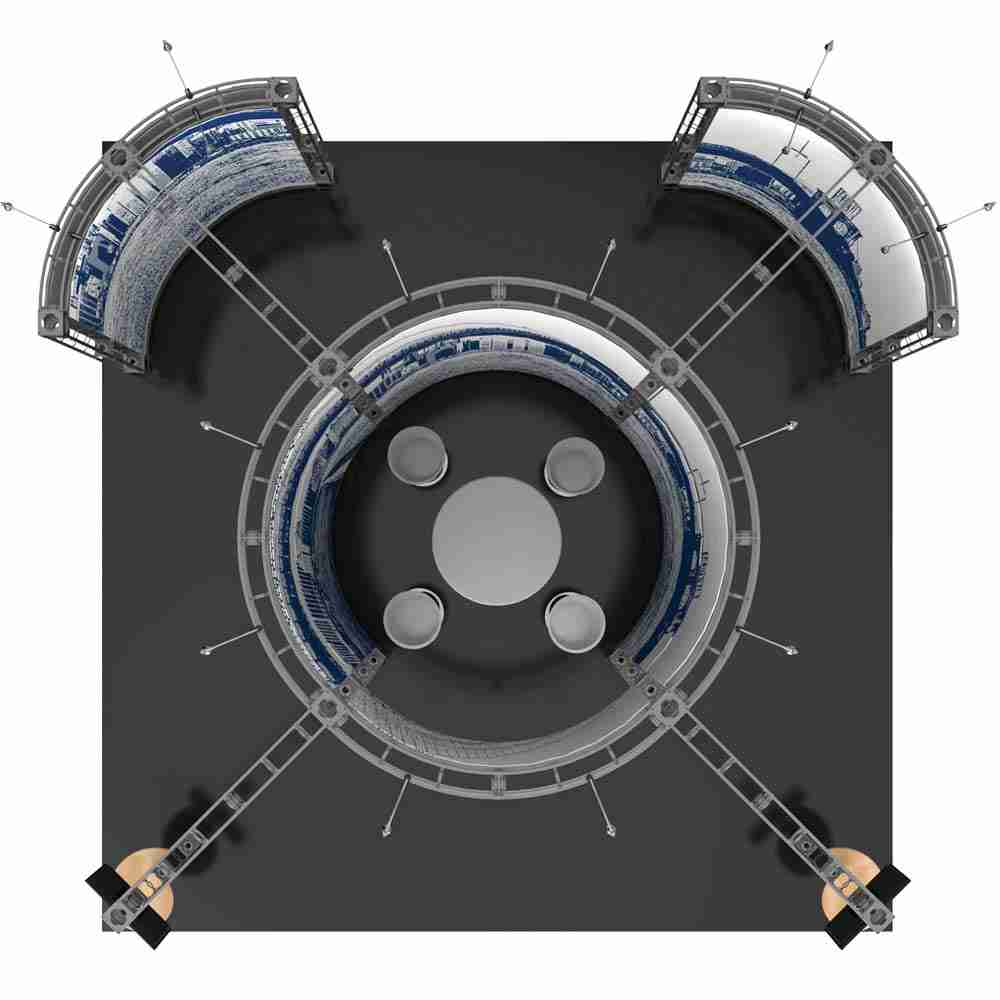

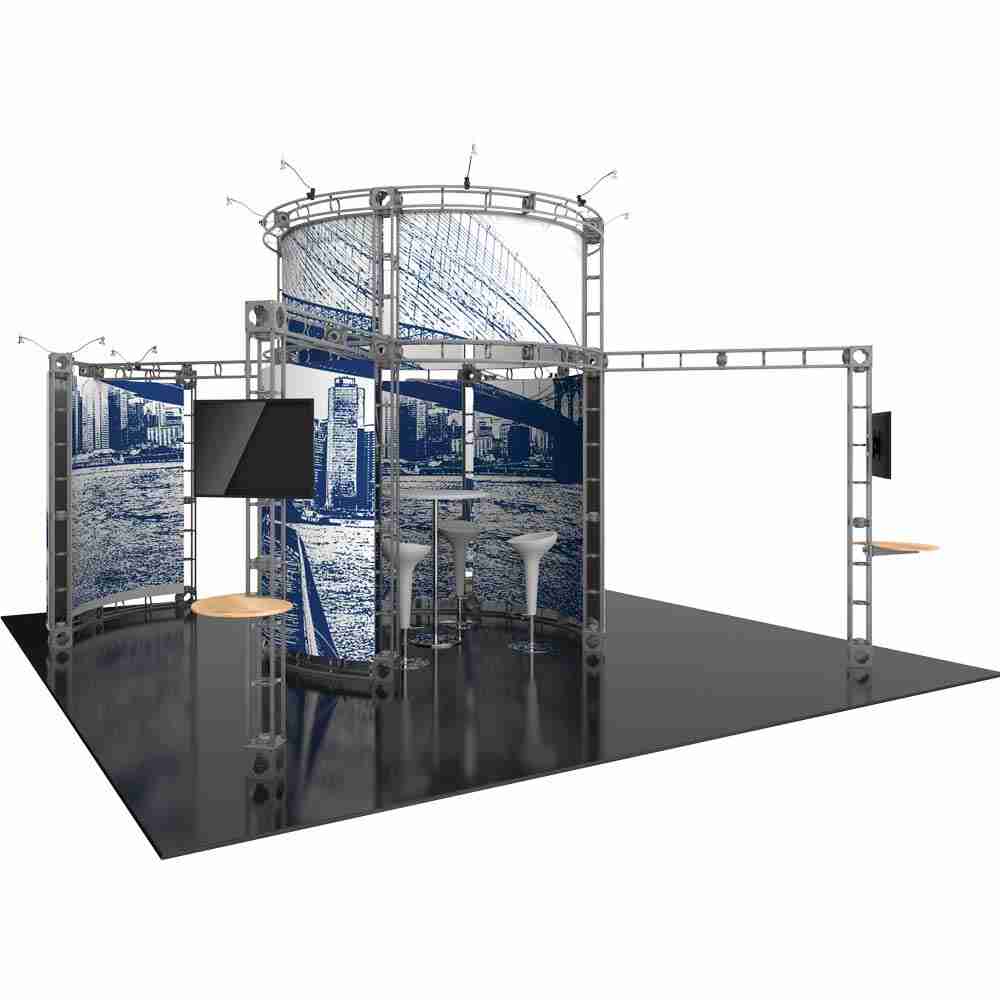

Atlas Orbital Express Truss 20ft x 20ft Modular Exhibit

– 20′ x 20′ kit size
– Custom appearance
– Toolless assembly
– Simple twist and lock design

Kit includes:
– 28 x 6-way junction boxes
– 27 x 36″ straight truss lengths
– 15 x 46″ straight truss lengths
– 30 x 45º curved truss lengths
– full set of quicklock connectors
– 2 x tabletops*
– 16 x Lumina 1, 50 watt spotlights
– 4 x monitor mounts**
– 5 x OCF2 molded cases

Graphic materials: Dye sublimated fabric panels
*Tabletop max weight = 25 lbs / 11.34 kgs
*Tabletop color options: silver, black, mahogany, natural
**Monitor mount holds 13″ – 39″ LCD, maximum weight = 50 lbs / 22.68 kgs
**Furniture and monitors are not included in kit

Who the Atlas Configuration Is Built For

The Atlas suits three specific buyer situations better than most alternatives on the market.

First, it works exceptionally well for exhibitors who attend four or more major shows per year and need a booth system that holds up to repeated pack-and-ship cycles. The aluminum extrusions and anodized finish are spec’d for exactly this kind of heavy rotation — the frame does not warp, corrode, or loosen at the connectors over time the way cheaper systems can.

Second, the Atlas is a strong fit for marketing teams managing booth installations across multiple staff members. Because no tools are required for assembly and the connector system is visually intuitive, a small team can build the full 20×20 without a dedicated installation crew or on-site labor costs, regardless of whether the lead installer was there last time.

Third, companies that want a modular upgrade path will find the Atlas particularly practical. The same connector hardware used in this exhibit is compatible across the full orbital truss display family, meaning you can add components, swap configurations, or expand into a different footprint without scrapping your existing investment.

What the Atlas 20×20 Orbital Truss Exhibit Includes

The kit is specific about what ships with the display, and understanding those details helps you plan for show day without surprises.

• Modular aluminum truss frame — precision-cut extrusions with orbital connectors that lock firmly without tools; no separate fasteners to lose between shows
• Full-coverage dye-sublimation fabric graphics — printed to a tension-fit profile that eliminates visible seams and maintains color accuracy show to show
• Integrated accessory rails — pre-engineered attachment points for LED lighting bars, monitor mounts, and shelf brackets without third-party adapters
• Rolling transit cases — padded interior compartments sized for each frame section and graphic panel; doubles as storage between events
• Hardware and assembly guide — component-labeled hardware map so any team member can build the exhibit from the documentation alone

For a broader breakdown of how the orbital connector system compares to other aluminum truss formats, the trade show truss system guide covers the structural differences in detail and is a useful reference before you commit to a frame type.

Assembly, Reuse, and Keeping the Frame in Top Condition

The Atlas is designed for a two-person setup in approximately 60 to 90 minutes, depending on how much of the accessory kit you are mounting. The orbital connectors snap into position by hand and lock with a quarter-turn motion — there are no wrenches, mallets, or separate fastening hardware involved. That speed matters on show day when drayage windows are tight and you are working against a move-in clock.

After the show, the disassembly sequence mirrors the build in reverse, and each component goes back into its labeled case compartment. Consistent repacking into the designated spaces protects the anodized finish on the frame and keeps the fabric graphics from picking up surface scratches in transit.

For long-term care, wipe the aluminum extrusions with a dry or lightly damp cloth after each event to remove any dust or debris before storage. The fabric graphics can be hand-washed in cold water if they pick up scuffs or light staining over time — the dye-sublimation process locks color into the fiber rather than sitting on top of it, so gentle washing does not affect the print. Store the cases in a climate-stable environment; prolonged exposure to high heat or humidity can stress the fabric fibers and affect how the panels tension across the frame over multiple seasons.

If your show schedule also calls for smaller footprints on off-peak dates, the 10×20 truss exhibit and the 10×10 orbital truss kit are built on the same connector system, so components and graphics language can stay consistent across booth sizes.

The atlas 20×20 orbital truss exhibit is built to perform season after season, not just for a single event. Whether you are running the 20×20 aluminum truss display as your flagship booth or rotating it alongside smaller configurations, the Atlas holds its structural and visual quality across years of consistent use — making the per-show cost of ownership lower than most comparable island display formats on the market.

Configure Your Atlas and Get It Moving

Contact the Showfire Displays team to confirm your Atlas configuration, submit your graphic files, and get a ship date on the calendar. The atlas 20×20 orbital truss exhibit is ready to spec out now — reach out today and keep your next show on schedule.
