20 ft Timberline Wave Top Display Kit – Straight Sides

This package includes:

• (2) Modular display frames
• (2) Metal fusion printed headers
• (2) Center panels
• (1) Joiner panel
• (2) Fabric end panels
• (2) Wave Top canopies
• (4) LED lights
• (2) Dye-sub fabric straight side panels
• (2) Acrylic reception desks
• (6) Acrylic shelves
• (1) Vesa compatible large monitor mount-supports up to a 50″ LCD screen.Not to exceed 50lbs.
• (2) Molded plastic wheeled cases. Interior dimensions: 26″ and 24″(inset)w x 45.5″h x9.375″d
• (1) set of Instructions

Product Information

From Crate to Carpet — How This Kit Goes Up

Getting a 20ft display show-ready sounds complex; in practice, this kit breaks it into a straightforward sequence that any two-person team can complete in under an hour.

1. Lay out the frame components. The aluminum extrusion sections are labeled and color-coded. Separate the base rails, vertical uprights, horizontal crossbars, and the wave top arch sections before you start connecting anything.
2. Build the back wall frame. Snap the base rails together along the floor line, then attach the vertical uprights at each connection point. The tool-free locking connectors click audibly when seated correctly.
3. Add the wave top header frame. The wave arch sections attach to the top of the outer uprights. Alignment is built into the extrusion profile — there is only one way the pieces fit, which eliminates guesswork.
4. Stretch on the fabric graphics. Slide the pillowcase-style fabric panels over the frame sections from the top down, then zip or clip the tension edges at the base. The stretch-knit material takes about 60 seconds per panel to seat properly.
5. Dress the wave top graphic. The header panel goes on last, wrapping over the arch frame and securing with the same tension system as the back wall. Step back and the wave silhouette is immediately visible.
6. Connect accessories and dress the floor. Monitor mounts, literature holders, shelving, and lighting attach to the extrusion channels with no drilling required. The 20ft timberline wave top display straight sides is now show-ready.

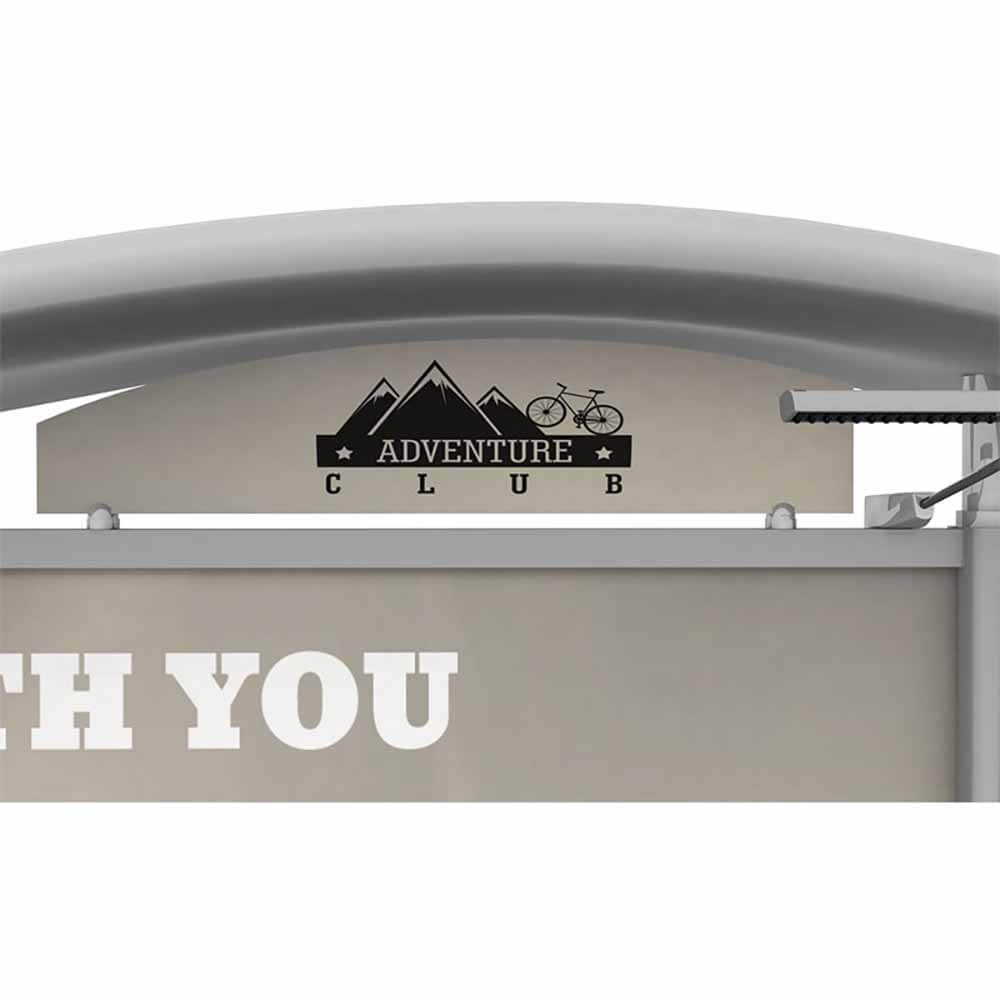

Graphic and Structural Details That Buyers Notice at 10 Feet and at 10 Inches

At distance, the wave top draws the eye because the curved header breaks the flat horizon line of a standard inline booth. Closer up, the quality of the dye-sublimation print is what reinforces confidence in your brand.

Dye-sublimation permanently bonds ink into the fabric fibers rather than sitting on top, which means colors hold their saturation after repeated washing and repacking. The stretch-knit substrate also diffuses light evenly — there are no hot spots or frame shadows behind the graphic when the booth is properly lit.

The aluminum extrusion frame is anodized, not painted, which matters for long-term durability. Anodizing penetrates the aluminum surface rather than coating it, so the finish does not chip or flake even after dozens of assembly cycles. Connection hardware is brass-threaded, which resists stripping during repeated use.

If you want to understand how this system compares to other modular formats, the modular trade show booth design guide covers the full decision framework, including when a fabric-over-extrusion system outperforms traditional pop-up or panel systems.

Building the Right Configuration Around This Kit

The 20ft timberline wave top display straight sides is a strong anchor for a complete exhibit program, and the Timberline system is designed so you can layer in accessories without replacing the base frame.

Storage is one of the most common additions. A custom 20ft timberline display configured with back-wall storage closets lets you keep product samples, literature, and team bags off the floor and out of sight — a detail that matters during a busy show day. Monitor mounting arms, charging stations, and overhead lighting bars are all compatible with the same extrusion channels that hold the graphics.

If your program requires flexibility across multiple show sizes, the Timberline display line scales both directions. Exhibitors who run smaller regional events alongside major trade shows often pair a 20ft timberline exhibit at their flagship shows with a 10ft timberline booth for regional appearances — the graphic style and frame system stay consistent, so branding reads as unified regardless of footprint. At the other end, if your program includes large convention hall activations, the 30ft timberline modular display extends the same structural logic to a larger footprint without requiring a different hardware ecosystem.

Choosing accessories intentionally from the start — rather than adding them show by show — saves money and avoids compatibility issues down the road.

Ready to Configure and Order

The 20ft timberline wave top display straight sides is available to configure and order directly through Showfire Displays. Custom fabric graphics are produced to your supplied artwork, and the Showfire team can provide file templates, pre-press review, and production guidance if you need it.

If you are still comparing options across the full 20ft Timberline range, the 20ft timberline with storage page lists the complete set of configurations so you can review them side by side before placing your order. Reach out with questions or configure your kit now — your next show has a deadline, and lead time matters.
